Produktinformasjon

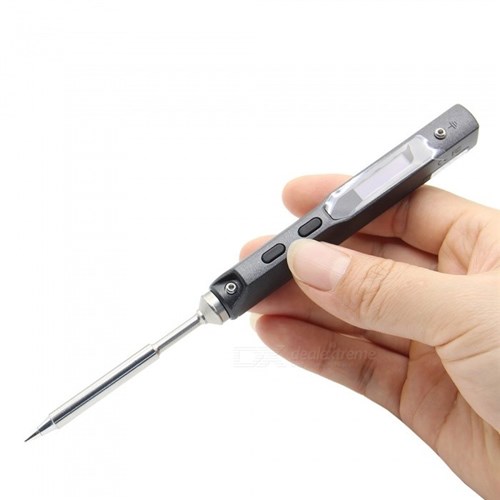

TS100 er en liten og smidig loddebolt som drives med 12-24V innspenning. Perfekt for bruk ute i felt. OBS! Blå farge, ikke sort som avbildet.
Anbefalt tilbehør
NYHET!
GRATIS FRAKT*
* Dette produktet kvalifiserer til gratis frakt. Andre varer i samme ordre vil da også få gratis frakt.
Unntak er varer med egne spesifike fraktkriterier.
kr 99,-
0| 0,-
Uten din rabatt kr 99,-
3|23|260
Spesifikasjoner
OLED SkjermMicro USB portDC5525 portStørrelse håndtak: Lengde 96mm, Diameter:16.5mmStørrelse oppvarming del: Lengde: 72+33mm, Diameter: 5.5mmVekt: 33g Innspenning: 12-24V
Product details in english
Features:
OLED screenMicro USB portDC5525 portControl part: length 96mm, Diameter:16.5mmHeating part: Length: 72+33mm, Diameter: 5.5mmWeight: 33g (power adaptor not included)Compliant with EU certification: CE FCC
TS100 employs 304 stainless steel nested shell of Polycarbonate plastic. It is designed with safety circuit and anti-static structure, integrated with DC5525 12-24V port, dual-temperature sensors and accelerated sensors with STM32 chip. Under these functionalities, temperature can be controlled accurately, stably and easily adjusted from 100°C to 400°C, and the TS100 also has sleep mode and automatic over-heating warning.Soldering tip heating end: built-in heating core, pocket-size making it more convenience. Four replaceable tip types meet your different needs.
External power supply: DC5525 power port is compatible with DC 12-24V Laptop AC Adapter/Power Bank/Car Power.
Micro USB port interface: Set up config files to design your own temperature rising curves and custom functions.
Additional function: Open-source application layer.
Main Parameters:Power: 65WTemperature stability: ±2%Soldering tip resistance to ground: <2?Temperature Range: 100? - 400?(max)Max operation ambient temperature: 40°C
