Produktinformasjon
Skalamodell av Piper Cub med vingespenn på 273cm. Modellen leveres klar til elektroinnstallasjon, og man kan sette i 30cc-bensinmotor, eller tilsvarene elektromotor. Modellen har flaps, noe som gir silkemyke landinger for skalapiloten.
PS! Produkt kan avvike fra video.
Les merKlippet er lagt til som relevant opplysning til produktet, men er ikke nødvendigvis identisk. Innhold i en produktvideo, testvideo eller et review kan avvike fra produktet som selges. Dette kan gjelde farger, spesifikasjoner, versjonsforskjeller, regionsforskjeller m.m. Det er produktets navn, beskrivelse og bilder du skal forholde deg til ved kjøp av varen.
OK

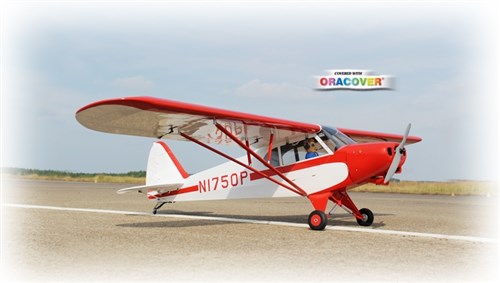

Phoenix Model has brilliantly captured the spirit of the Super Cub PA-18 with this outstanding, giant-scale recreation. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly. Slotted flaps provide function as well as scale appearance. The wings are removable should you want to disassemble it for transportation or storage. A real favourite with scale pilots, this is a Cub you will be proud to own.
Technical data - Wingspan: 2730mm (107.4in)
- Length: 1800mm (70.87 in)
- Flying weight: 8 ? 9.5 kg
- Wing area: 110 dm2
- Wing loading: 81g/dm2
- Wing type: NACA profile
- Covering type: Genuine ORACOVER
- Radio: 6 channel minimum (not included)
- Servo: 8 standard hi-torque servo: 2 aileron; 2 flap; 2 elevator; 1 rudder; 1 throttle (not included)
- Recommended receiver battery: 6.0V 2400-2600 mAh NiMH (not included)
- Servo mount: 21mm x 42 mm
- Propeller: suit with your engine
- Engine: 22-33 CC gas engine (two stroke) (not included)
- Motor: brushless outrunner 2500 W, 250 KV (not included)
Gravity CG: 120 mm (4,7 in) Back from the leading edge of the wing, at the fuselage
Control throw Ailerons: Low: 12mm up/down, 10pst expo; High: 20mm up/down, 10pst expo
Control throw Elevators: Low: 12mm up/down, 12pst expo; High: 15mm up/down, 12pst expo
Control throw Rudder: Low: 30mm right/left, 15pst expo; High: 45mm right/left, 15pst expo
Control throw Flaps: Mid: 20mm down; Landing: 30mm down
Experience level: Intermediate
Plane type: Scale Civilian
RECOMMENDED MOTOR AND BATTERY SET UP
Motor: Rimfire 1.60 (not included)
Propeller: 18x8 E APC (not included)
Lipo cell: 12 cells / 5000 ? 6000mAh (not included)
Esc: 120-160A / HV (not included)
Feature
Genuine Oracover covering
Top quality balsa/light plywood construction
Detailed instrument panels
True-to-scale outline
Plug-in wings with transport frames
Scale landing gear
All hardware included
Colour chart
White ( 21010)
Ferrari Red ( 21023)
Packing
Dimension (mm) Box : 1519 x 440 x 368
