Produktinformasjon

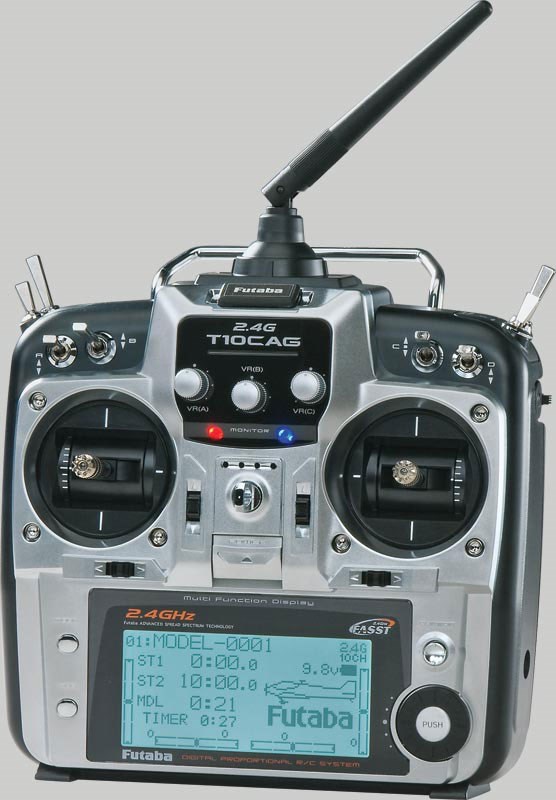

Futaba 10CG FASST med innebygget 2.4ghz modul. Radioen leveres med R6014 FASST mottaker, strømbryter og ombyggingsdel for å få glatt stikke slik som de fleste bruker på helikopter. Radioen leveres uten servoer, batterier og lader.
Big, 160 x 72 LCD with backlighting, adjustable contrast & auto-off Dial ?n Key? programming w/joystick navigation 15-Model memory (expandable w/optional CamPACs) 10-character user name 10-character model name 2048 resolution in FASST 10-channel mode Basic & Advanced menus Enhanced airplane, heli & glider software Smart Switch Technology? (SST) ? Logic Switches allow you to activate a function when specified switch and/or stick positions occur Up/down on/off timer (activate by stick or switch) Tracks service hours for radio and models Mode 1-4 selectable (Modes 3 & 4 programmable) Assignable functions/switches Auxiliary channel screen ? for 1-step function/switch assignment & eliminating unused auxiliary functions 2 proportional slider switches Digital trims on all 4 main channels Trim memory & sub-trims (all channels) Adjustable trim steps (1-40) Fail-safe, servo reversing & EPA ?Full Functionality? trainer system (cord required) Flap switch (3-position) Retract switch Rotary Dial (3) Adjustable Throttle Cut/Idle Down Sticks w/length & tension adjustments Servo cycle w/bar graph displays Constant trim, voltage, name and timer display
Advanced Airplane Menu 8 Programmable Mixes (4 linear/ (4) w/5-point curves) 9 Factory-Defined Mixes: Elevator-Flap; Ailvator (for dual elevator servos); Throttle-Needle; Aileron Differential; Flaperon; V-Tail; Elevon; Snap Roll; and Air Brake w/elevator delay Dual/Triple rates (4 ch.) Exponential (4 ch.) Idle down Throttle cut Throttle delay Throttle Hold & Idle-up w/delayPlus 2 independent gyro settings 7-point throttle curve Flap trim
Advanced Heli Menu The 10C accepts separate gyro sensitivity, governor speed and servo travel rates for up to 4 flight modes ? and automatically changes all three when the flight mode changes. 6 Programmable Mixes (4 linear/ (2) 5-point curves)8 Factory-Defined Mixes: Hover-Throttle; Hover-Pitch; Throttle-Needle; Governor; Offset; Revo (5-pt.); Delay; and Throttle Mix (ail/ele/rdr)Gyro menu Plus 8 swash plate types w/graphics Swash Plate AFR (4) 7-point throttle curves and (5) (including throttle hold) 7-point pitch curvesAdjustable High/Low pitch setting3 Adjustable Idle-up conditions
Advanced Glider Menu 8 Programmable Mixes (4 linear/ (4) 5-point curves)12 Factory-Defined Mixes: Butterfly-Elevator (2); Elevator-Flap; Chamber Mix (w/ail/ele/rdr adj.); Aileron-Flap; Aileron-Rudder; Flaperon; V-Tail; Flap Trim; Butterfly w/spoiler adj; and 4-point Offset (w/camber adj. for basic/launch/thermal/speed) Plus Adjustable spoiler Adjustable Throttle Cut Single/Dual Aileron and Flap Servo SelectionsStart, Speed, Distance & Landing conditions, Adjustable Airbrake Activation Adjustable Motor Cut
PS: I Europa har vi bare en versjon av denne radioen, 10CG. I USA finnes den i to versjoner 10CAG og 10CHG. Forskjellen er default type-valg og ratchet. I versjonen vi selger følger det med ombygging til glatt stikek slik at samme radioen kan kjøpes av både flyfolket og helifolket.
