Firehjulstrekk
Vannbeskyttet elektronikk
RTR (Ready to Run)

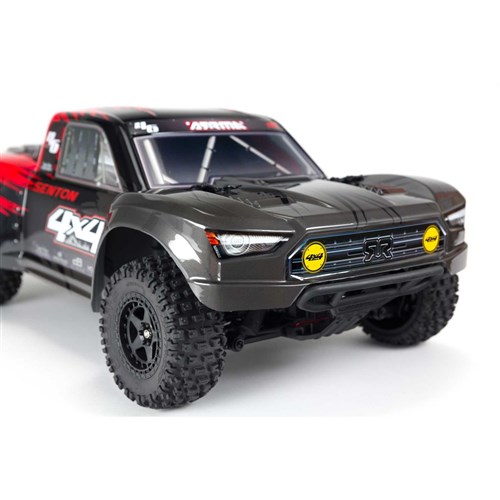

Arrma Senton V3, her med børsteoppsett og firehjulsdrift. Denne bilen tåler mye og kan brukes hele året, leveres med all elektronikk ferdig montert i bilen og rattradio med god rekkevidde og garantert fri for forstyrrelser. Bilen leveres med 8,4V NiMh-batteri og vegglader til dette, så her er alt klart for kjøring både på og utenfor allfarvei. Bilen er ShortCource-variant med veldig gode kjøreegenskaper på småkupperte baner og i lett terreng. Holdbar drivlinje, spektrum 6kg styreservo og med kraftig 4-hjulsdrift klarer denne det meste.
BatterivalgBilen leveres med 3300mAh-batteri på 8,4V. Batteriet er av Hump-typen så husk dette ved bestilling av ekstra batteri. Husk også overgang til EC3/IC3 om du kjøper batteri med Deans-type kontakt.
Fartsregulator i bilen tåler også bruk av 2S LiPo. Ved oppgradering til 2s LiPo må LiPo-cut off aktiveres på regulatoren, dette for å ikke overtrekke og ødelegge batteriet. En kompatibel lader må også benyttes, den som følger med er kun beregnt for NiMh. Batteriets størrelse kan være på max: 156x51x48mm.
ElektronikkARRMA Senton V3 kommer her med den gode Spektrum SLT3, og den er klar for rå kjøring rett ut av esken.Bilen leveres med sprutsikker elektronikk. Det vil si at servo, regulator og mottaker er laget for å tåle bruk i fuktige forhold. Dette krever god tørk og vedlikehold i etterkant. Elektronikken er ikke beregnet for bruk under vann.
Nødvendig tilbehør4 AA batterier til radioSpesifikasjoner| Skala | 1/10 |
| Lengde | 558mm |
| Bredde | 305mm |
| Høyde | 210mm |
| Bakkeklaring | 32mm |
| Vekt | 2,95 kg |
| Motor | 550-size 12T |
| Styreservo | Spektrum SPMS650 Digital |
| Radiosystem | 2,4GHz Spektrum SLT3 |
| Batterikontakt | IC3/EC3 |
| Lader | 230V vegglader 0,7A ladestyrke |
Product details in english
Features
Stronger chassis and retained hinge pin plates
Steering with more clearance for stones
Castellated slipper pad and sliding gear mesh
23T Spline servo saver
Brushless-ready 37T 1.35Mod diffs with silicone O-rings
Power Module with sliding gear mesh and improved dirt management
Rubber shielded bearings throughout
Oil-filled shocks with silicone O-rings
New body design, front and rear bumpers, paint and decals
New vented tires
MEGA 12T brushed 550 motor
MEGA waterproof* ESC
* Note: For details on waterproof standards, refer to the instruction manual
IC3? connectors (EC3?) compatible
Signature easy-access modular design
Easy-access power module
Easy-access electronics module
Easy-access diff module removal front and rear
Double wishbone suspension front and rear
Metal-geared differentials
Adjustable ride height
Adjustable body mounts
Extended height dirt defenders
Multi-terrain dBoots® Fortress? SC tires
Tough multi-spoke black wheels
ADC-N7 7-cell NiMH wall charger
30MPH (48km/h) speed achievable in optimum driving conditions with optional gearing
Overview
Fast, rugged and factory-built, the 2S LiPo-compatible ARRMA® SENTON? 4X4 MEGA RTR comes ready to bash on any terrain. This version of the Short Course truck features new equipment that improves on the original?s already impressive performance and durability.
The SENTON? 4X4 MEGA RTR Short Course truck is DESIGNED FAST, DESIGNED TOUGH ? built for exciting bashing speeds and extreme, all-terrain durability. New features to enhance its unstoppable performance include a stronger chassis and retained hinge pin plates; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber shielded bearings throughout.
The Short Course truck now also includes the Spektrum? SLT3? transmitter and SLR300 receiver. The transmitter is ergonomically designed for long periods of fatigue-free driving and has a foam wheel for precise fingertip control plus an improved hand grip and trigger feel. New bashers will be able to set throttle limits at 50% or 75% until they are ready to use the full speed potential. The SLT3? is compatible with Tactic® SLT? receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
It retains the ingenious modular design perfected by ARRMA® engineers for easy component access and maintenance. The power module, with improved dirt management, consists of a MEGA 550 motor, motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis as a complete unit by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The gear ratio can be finely tuned as the power module now uses a sliding motor mesh design.
A two-piece molding screwed to the truck?s chassis serves as its electronics module, containing a waterproof receiver box, servo mount and ESC tray. The SLR300 receiver mounts inside the receiver box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily.
The differential module houses each differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for differential access. The SENTON? 4X4 MEGA RTR comes brushless-ready with 37T 1.35mod diffs with silicone O-rings. The large gears can withstand huge torque, and internal metal gears have been chosen for reliability during extreme bashing.
Its full-time 4WD transmission uses strong front, rear, and centerline telescopic driveshafts that can?t be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver. The SENTON? 4X4 MEGA RTR includes the waterproof Spektrum? SPMS650 digital servo for 20% more torque than the previous version?s ADS-5 servo.
The self-bleeding, oil-filled shocks, now with silicone O-rings, use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod-end has a molded-in spring perch for extra toughness. High chassis guards limit the amount of dirt and debris that can get into the chassis tub. Side impact nerf bars further protect the chassis and body shell. Shock-absorbing loops keep the front and rear bumpers secured to the chassis, offering defense against heavy impacts.
Tough, multi-spoke black SC wheels with vented dBoots® Fortress? SC tires give the SENTON? 4X4 MEGA RTR effective traction for bashing on almost any terrain. Multiple battery types can be used with the hook-and-loop mounting, from 6-cell NiMH packs to a 2S block pack. This version comes with a Dynamite® 3300 mAh 8.4V 7-cell Speedpack® 2 Hump NiMH battery that provides 35% more run time compared to the 2400mAh pack of its predecessor.
Whats in the Box?
(1) ARRMA® SENTON? 4X4 MEGA 550 1/10 Scale 4WD Short Course Truck RTR
(1) MEGA Waterproof* ESC
(1) MEGA 12T Brushed 550 Motor
(1) Spektrum? 2.4GHz SLT3? 3-Channel Transmitter
(1) Spektrum? SLR300 Receiver
(1) Spektrum? Waterproof* SPMS650 Digital Servo
(1) Dynamite® 3300mAh 8.4V 7-Cell Speedpack® 2 Hump NiMH Battery
(1) ADC-N7 7-Cell NiMH Wall Charger
(1) Product Manual
*For details on waterproof standards, refer to the instruction manual.
Mer info på Engelsk
