Produktinformasjon

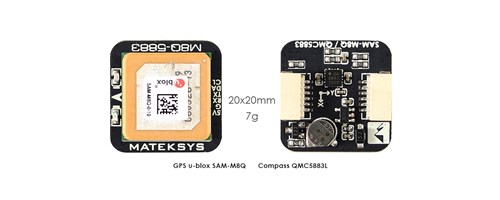

Mateksys M8Q-5883 har både GPS og Compass i liten formfaktor, perfekt for den som ønsker å fly longrange!
Spesifikasjoner
72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/CMagnetisk sensor QMC5883LInspenning: 4-6VUart (Tx,Rx) grensesnitt for GPS SAM-M8QI2C (DA,CL) grensesnitt for Kompass QMC5883LStørrelse: 20 x 20 x 10 mmVekt: 7 gramStøttet av INAV/Betaflight/Ardupilot, ect.
Inkludert i pakkenM8Q-5883 module, 1 pcSH1.0-6P 20cm silikon ledning, 1 pcTransparent PVC krympeplast
Product details in english
Features
72-channel u-blox M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/COn-board Ultra low noise 3.3V voltage regulator and RF filter for noise blockingFeatures an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunityThe 15 x 15 mm patch antenna provides the best compromise between the performance of a Right Hand Circular Polarized (RHCP) antenna and a small size to be integrated in any design.Magnetic sensor QMC5883L integratedMax navigation update rate:
Single GNSS up to 18 Hz
2 Concurrent GNSS(GPS & GLONASS) up to 10 HzHorizontal position accuracy(GPS & GLONASS) 2.5 m CEPVelocity accuracy 0.05m/sCold start 26 s
Aided cold starts: 2 s
Hot start 1 sSensitivity:
Tracking & Navigation: ?165 dBm
Reacquisition: ?158 dBm
Cold start: ?146 dBm
Hot start: ?155 dBmInput voltage range: 4~6VUart (Tx,Rx) interface for GPS SAM-M8QI2C (DA,CL) interface for Compass QMC5883LBattery for HOT module startPower LED(Red) & Time pulse LED(Blue)Dimensions: L20 x W20 x H10 mmWeight: 7 gramSupported by INAV/Betaflight/Ardupilot, ect.
IncludingM8Q-5883 module, 1 pcSH1.0-6P 20cm silicon wire, 1 pcTransparent PVC Heat-shrink tubeTipsGPS, GLONASS, SBAS, QZSS are enabled by defaultBlue PPS LED blinking(1Hz) means 3D fixedupdate rate 1Hz & baudrate 9600 defaultBaud 9600~115200 supported by INAV/BF/Ardupilotupdate rate 5Hz with INAV UBLOX Protocolupdate rate 10Hz with INAV UBLOX7 ProtocolCompass Alignment(Arrow forward):
INAV/BF: CW 270° Flip
Ardupilot/Mission Planner: Rotation NoneBF doesn?t support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last.No need compass for Fixed wings with INAV firmwareThe scratches on ceramic antenna are the result of tuning the antenna by ublox.
