Produktinformasjon
Team Blacksheep Caipirinha 2 er en langdistanse cruiser vinge med en flytid på rundt 90 minutter med anbefalt batteri. Modellen er satt sammen så langt som mulig med ferdig kuttet plass til kamera, servoer, batteri, mottaker og videosender. Ca 2 timer montering må beregnes.
PNP utgaven levers med digitale servoer, 2814 1150kv Cobra-motor, 50A HobbyWing ESC og høykvalitets Aeromnaut CAM karbon foldepropeller. Sender, mottaker, batteri og FPV utstyr følger ikke med.
Spesifikasjoner:| Vingespenn: | 93cm |
| Vekt: | 1400g inkludert GoPro Session 5 og batteri |
| Batteri: | 4s 4500-6600mAh, 20C eller mer |
| Optimal størrelse er 48 x 36 x 150mm, 525g |
| Maks størrelse er 60 x 44 x 165mm, 550g |
GoPro som er avbildet følger ikke med
Product details in english

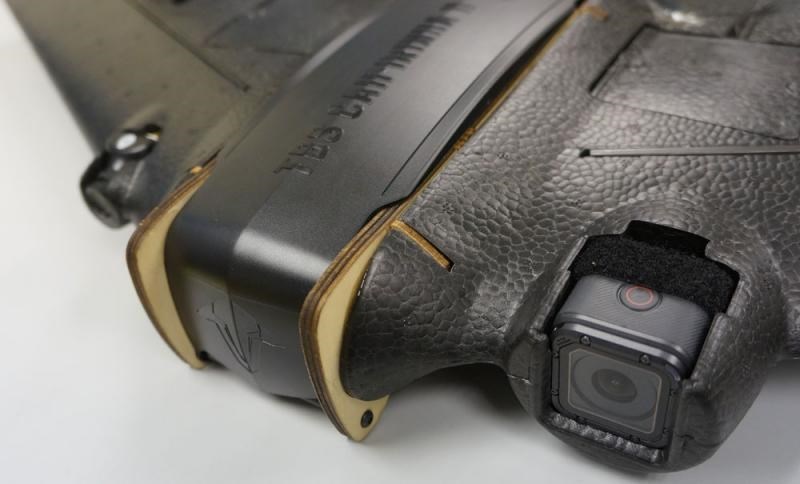

The Caipirinha II is based on the Wipeout by HappyFlyers from Switzerland! A polycarbonate battery bay, push-to-open equipment bays, a PDB with up to 3 battery inputs, wiring channels that stretch across the entire wing, a huge 6mm-plywood-lined center section are just some of the innovations that make this plane stand out from the rest. An ultra-sleek and aerodynamic finish ensure that no energy goes to waste, and a very good glide slope makes thermaling or long distance slopeing highly enjoyable.

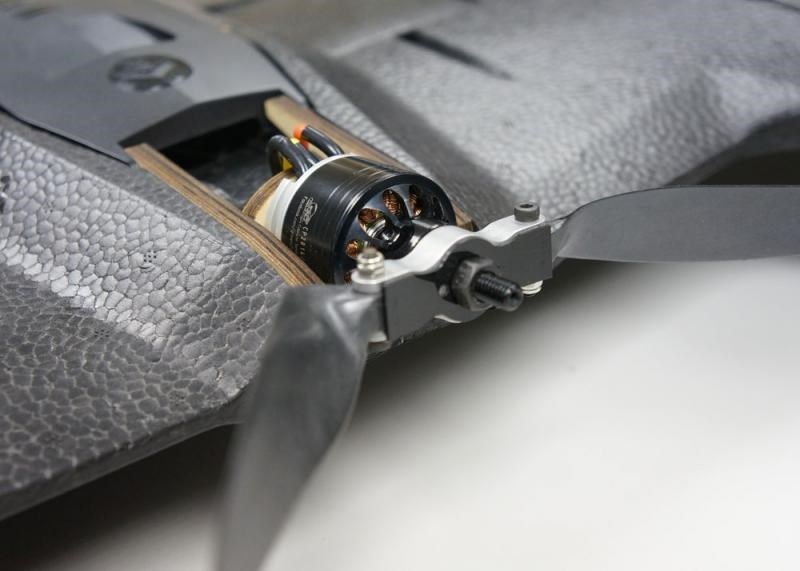

The PNP kit from TBS is equipped with high quality, digital metal gear servos, a CP2814-1150kV Cobra motor, 50A HobbyWing ESC and high quality Aeronaut CAM Carbon folding propellers. Vertical climbs, rocket-like punch outs, or highly efficient cruising are all within the design parameters of this setup!
We can confidently say its going to be the only long range cruiser you will ever need, and the only flying wing in its weight class with such a performance envelope.
Features
Small, lightweight, fly anywhere design Ultimate in flight stability and endurance Virtually indestructible EPP/Plywood construction Pre-cut camera, servo, battery, R/C receiver and video transmitter slots 2x push-to-open equipment bays for R/C and FPV electronics Pre-cut, sanded and covered ultra-lightweight elevons & pushrods
PNP kir contains:
CAPIRINHA 2 with all hardware accessories
2x Digital MG Servo 6kgf/cm, 5-6V
CP2814-1050kV Cobra Motor
50A HobbyWing Skywalker Wing ESC
Aeronaut 10x6 folding prop with prop assembly (CNC aluminum)
Everything prepared as far as possible. Final assembly time around 2 hours.
Specifications
36.5in / 93cm wingspan! 50oz / 1400g AUW (including GoPro Session5 and battery) 90min flying time 45mi / 75km endurance Battery (4S): Capacity: 4500mAh 4S - 6600mAh 4S, 20C or more SUGGESTED Dimension: 48 x 36 x 150 mm, 525g MAX Dimension: 60 x 44 x 165 mm, 550g
Recommended FPV and Radio equipment
FPV camera: TBS ZeroZero II or TBS69 Video transmission: 5.8GHz: TBS FPVision or TBS UNIFY PRO V3 with TBS CORE PRO 2.4GHz: TBS CORE PRO with Unify 500mW / 800mW VTx Crossfire Micro Rx or Diversity Rx
Preliminary Manual (for experts only):
1. Lay out electronics (dry-fit)
2. Glue wing halves together
3. Set up radio gear and electronics
4. Set elevon travel +8mm, -6mm
5. AIL EXPO 60%, ELE EXPO 50%
6. Mount propeller
7. Check CG (bump near 30.5mm cutouts)
8. Fly, Crash, Repair, Repeat!
Mer info på Engelsk
